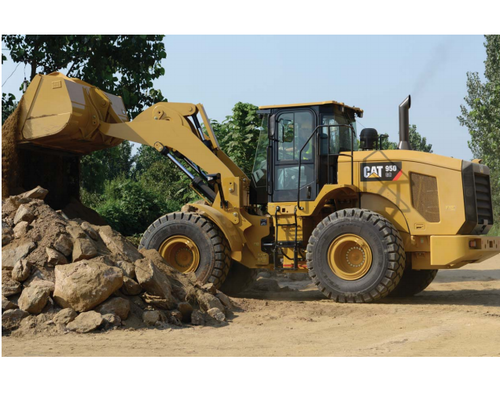

Leading manufacturer of CAT 950 GC / 950 L Wheel Loaders.
Product Details:
| Bore (mm) | 105 mm |
| Brand | CAT |
| Condition | New |
| Gross Power (HP at rpm) | 168 Kw at 2200 rpm |
| Loader Bucket Capacity (cum) | 2.5-4.4 cum |
| Max. Torque (N.m/min-1) | 931 N·m at 1300 rpm |
| Maximum operating weight(Kg) | 18676 Kg |
| Model | 950 GC |
| Stroke (mm) | 135 mm |
| Travelling speed -Forward (Km/h) | 7,12.5,22,34 Km/h |
| Travelling speed -Reverse (Km/h) | 7,12.5,22 Km/h |
| Net Power | 151 KW |
| Breakout Force | 147.0 KN |
We also deal in Cat 950 GC Wheel Loaders.
Operating Details:
| Breakout Force | 147.0 KN |
| Note | Compliance to ISO (2007) 14397-1 Sections 1 thru 5. |
| Note | Full compliance to ISO (2007) 14397-1 Sections 1 thru 6, which requires 2% verification between calculations and testing. |
| Static Tipping Load Full 40° Turn - ISO 14397-1 | 10503.0 kg |
| Static Tipping Load Full 40° Turn - Rigid Tires | 11197.0 kg |
Hydraulic System:
| Steering System Pump Type | Piston |
| Hydraulic Cycle Time - Lower, Empty, Float Down | 2.8 Sec |
| Hydraulic Cycle Time - Dump, at Maximum Raise | 1.2 Sec |
| Hydraulic Cycle Time - Raise from Carry Position | 6.1 Sec |
| Hydraulic Cycle Time - Total Cycle Time | 10.1 Sec |
| Implement System Pump Type | Piston |
Product Details:
| Brand | CAT |
| Model | Cat 950 GC |
| Net Power | 151 KW |
| Operating Weight | 18676.0 kg |
| Breakout Force | 147.0 KN |
| Bucket Capacities | 2.5 m3 to 4.4 m3 |
| Bore | 105.0 mm |
| Stroke | 135.0 mm |
We also deal in Cat 950 GC Wheel Loaders.
Engine:
| Net Power - ISO 9249 | 151 KW |
| Engine Model | Cat® C7.1 |
| Bore | 105.0 mm |
| Stroke | 135.0 mm |
| Displacement | 7.01 L |
| Max Gross Power @ 2,000 rpm - ISO 14396 | 171.0 KW |
| Max Gross Torque @ 1,400 rpm | 1020.0 N·m |
| Max Net Torque @ 1,300 rpm | 931.0 N·m |
| Rated Gross Power @ 2,200 rpm - ISO 14396 | 168.0 KW |
| Rated Net Power @ 2,200 rpm - ISO 9249 | 151.0 KW |
Weight:
| Operating Weight | 18676.0 kg |
Bucket:
| Bucket Capacities | 2.5 m3 to 4.4 m3 (3.3 yd3 to 5.75 yd3) |
Operating Details:
| Breakout Force | 147.0 KN |
| Note | Compliance to ISO (2007) 14397-1 Sections 1 thru 5. |
| Note | Full compliance to ISO (2007) 14397-1 Sections 1 thru 6, which requires 2% verification between calculations and testing. |
| Static Tipping Load Full 40° Turn - ISO 14397-1 | 10503.0 kg |
| Static Tipping Load Full 40° Turn - Rigid Tires | 11197.0 kg |
Transmission:
| Fwd 1 | 7.0 km/h |
| Fwd 2 | 12.5 km/h |
| Fwd 3 | 22.0 km/h |
| Fwd 4 | 34.0 km/h |
| Reverse 1 | 7.0 km/h |
| Reverse 2 | 12.5 km/h |
| Reverse 3 | 22.0 km/h |
Hydraulic System:
| Steering System Pump Type | Piston |
| Hydraulic Cycle Time - Lower, Empty, Float Down | 2.8 Sec |
| Hydraulic Cycle Time - Dump, at Maximum Raise | 1.2 Sec |
| Hydraulic Cycle Time - Raise from Carry Position | 6.1 Sec |
| Hydraulic Cycle Time - Total Cycle Time | 10.1 Sec |
| Implement System Pump Type | Piston |
